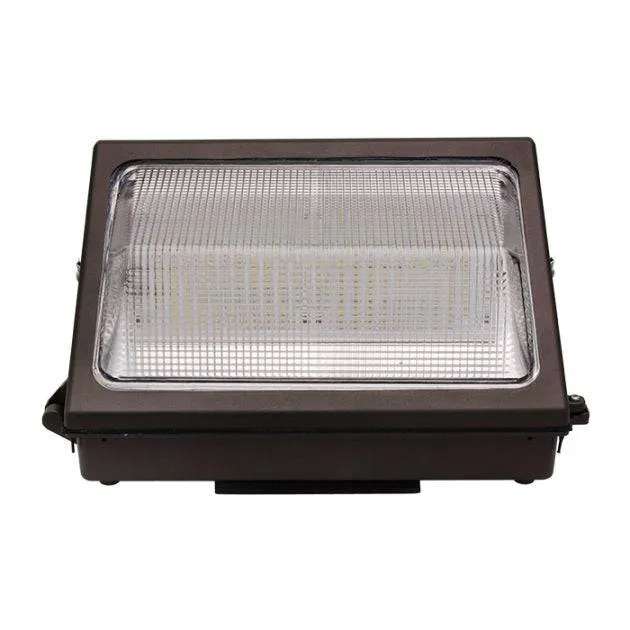

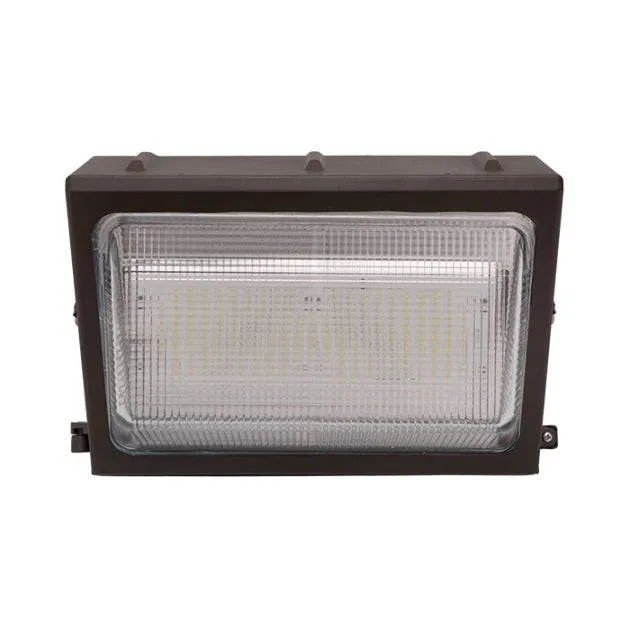

LED NICOR OWG3080MV50BZ WALLPACK 80 Watt 5K in BRONZE- 10,659 Lumens
The Corvus LED Wallpack features the next-generation design of a traditional wallpack with 5000K. Corvus delivers powerful light with uniform light distribution and is easy to install making it an ideal solution for security and perimeter lighting.
Specifications
- 5000K standard model
- Single CCT in 80 CRI and Select models in 70 CRI to improve safety and color definition in public places
- Thermally-protected, high-efficiency driver
- Input voltage of 120-277VAC
- Power Factor = >0.9
- THD = <20%
- Operating temperature rating of -4°F to 104°F (-20°C to 40°C)
Construction
• Die-cast aluminum housing
• Three (3) 1/2” knockouts for conduit feed or sensors

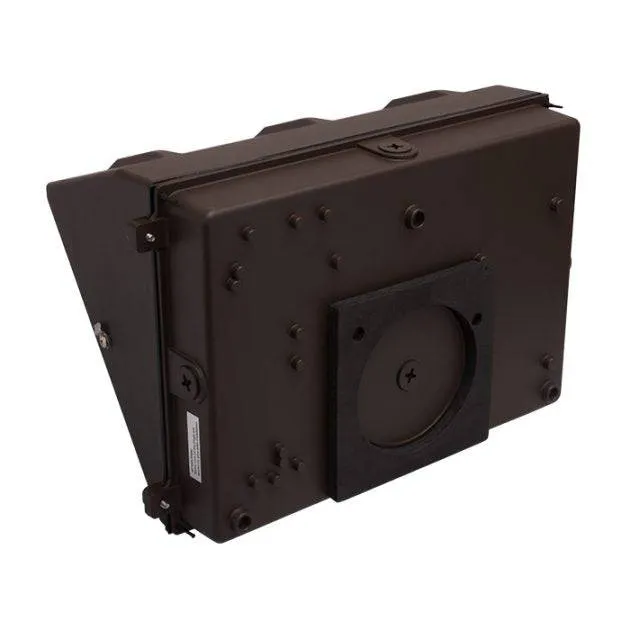

• Toolless, separable hinged backplate for easy installation and maintenance
• Stainless steel hardware
• Fine-textured, UV-stabilized powder coat bronze
Optical System
• Tempered clear prismatic glass maximizes lumen output
• Single CCT LED used for 5000K standard model.
• Single CCT in 80 CRI and Select models in 70 CRI to improve safety and color definition
in public places.
Electrical
• Thermally-protected, high-efficiency driver
• Input voltage of 120-277VAC
• Power Factor = >0.9
• THD = <20%
• Operating temperature rating of -4° to 104°F (-20°C to 40°C)
Controls
• Fixture mounts directly to J-Box and walls with screws
• Wiring possible through backplate or knockouts
• Separable hinged backplate to allow for easy mounting
• For installations where power surge may be possible, NICOR recommends installing
additional surge protection at the electrical distribution panel
Listings
• LM-79, LM-80 testing performed in accordance with IESNA standards
• cULus 1598 Listed for wet locations
• IP65 Rated
• Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions
• RoHS Compliant
• TM-21 Reported L70(9k) life >54,000 hours
• DLC Standard
